Angle Joints
Here you will find a wide selection of common types. Our angle joints are sorted by thread size. For the joint forks, discs and splints are available individually, so you can only order the really needed parts. The design drawings are designed to … Continue reading
Showing all 9 results
-
Ball head connection for ball 7 mm with shaft 6 mm rope 1.5 mm
SKU: 102708Ball head connection for ball 7 mm with shaft 6 mm rope 1.5 mm
The set consists of 2 parts
1. mounting ball head :
Dimensions :
Outer diameter 8 mm
Total length 19 mm
Spigot diameter 5mm
Attachment length : 5 mm
Hole for rope : 1,7 mm ( rope 1,5 mm )
2nd plastic clip for securing :
Total length : 14 mm
Outer dimensions : 15 x 12 mm
Shank bore : 6 mm
details
25.70 €incl. 19% VAT
plus shipping
Add to basket -
Angle Joint Size CS10
SKU: 100730Angle joint DIN71802 CS10, M6 right galvanized white

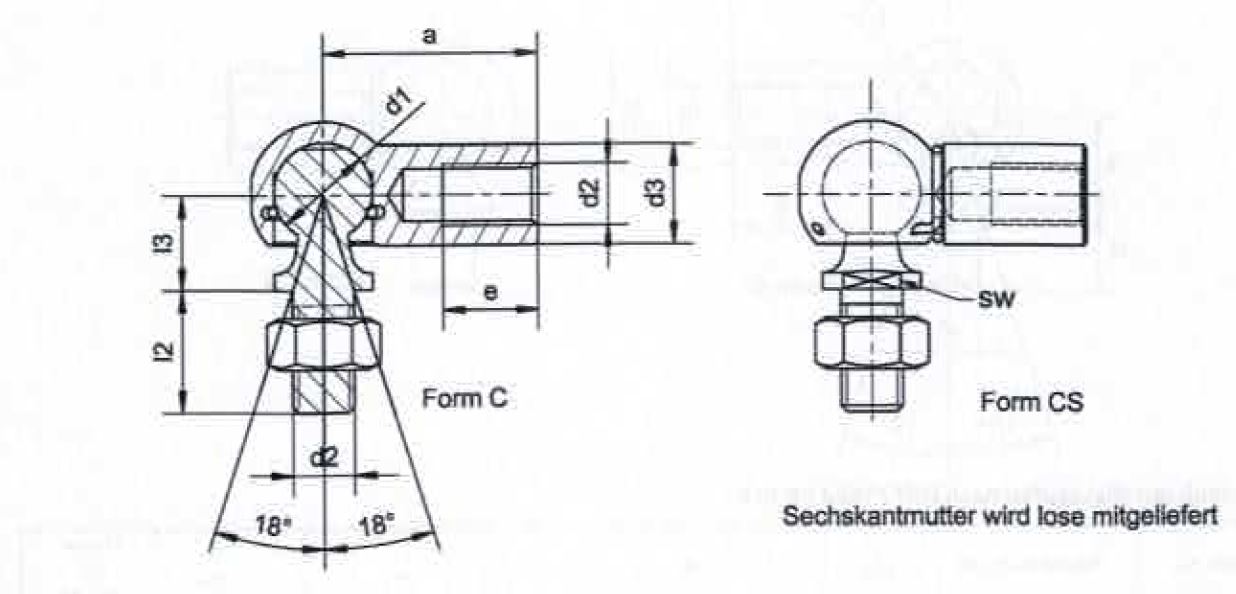

Drawing:
d1=10mm
d2=M6
d3=10mm
l2 = 12.5mm + -0.3mm
l3 = 11mm + -0.3mm
a = 25mm + -0.3mm
e=min. 11.5mm
SW=8mm
Download (construction drawing)
details
5.75 €incl. 19% VAT
plus shipping
Add to basket -
Angle Joint Size CS13
SKU: 100731Angle joint DIN71802 CS13, M8 right galvanized white
Drawing:
d1=13mm
d2=M8
d3=13mm
l2 = 16.5mm + -0.3mm
l3 = 13mm + -0.3mm
a = 30mm + -0.3mm
e=min. 14mm
SW=11mm
Download (construction drawing)
details
5.75 €incl. 19% VAT
plus shipping
Add to basket -
Angle Joint Size CS16
SKU: 100733Angle joint DIN71802 CS16, M12 right galvanized white
Drawing:
d1=16mm
d2=M12
d3=16mm
l2 = 20mm + -0.3mm
l3 = 16mm + -0.3mm
a = 35mm + -0.3mm
e=min. 15.5mm
SW=13mm
Download (construction drawing)
details
10.38 €incl. 19% VAT
plus shipping
Add to basket -
Angle Joint Size CS16
SKU: 100732Angle joint DIN71802 CS16, M10 right galvanized white
Drawing:
d1=16mm
d2=M10
d3=16mm
l2 = 20mm + -0.3mm
l3 = 16mm + -0.3mm
a = 35mm + -0.3mm
e=min. 15.5mm
SW=13mm
Download (construction drawing)
details
7.04 €incl. 19% VAT
plus shipping
Add to basket -
Angle Joint Size CS19
SKU: 100736Angle joint DIN71802 CS19, M16 right galvanized white
Drawing:
d1=19mm
d2=M16
d3=22mm
l2 = 28mm + -0.3mm
l3 = 20mm + -0.3mm
a = 45mm + -0.3mm
e=min. 21.5mm
SW=16mm
Download (construction drawing)
details
31.13 €incl. 19% VAT
plus shipping
Add to basket -
Angle Joint Size CS19
SKU: 100735Angle joint DIN71802 CS19, M14x2.0 right galvanized white
Drawing:
d1=19mm
d2=M14x2.0
d3=22mm
l2 = 28mm + -0.3mm
l3 = 20mm + -0.3mm
a = 45mm + -0.3mm
e=min. 21.5mm
SW=16mm
Download (construction drawing)
details
25.30 €incl. 19% VAT
plus shipping
Add to basket -
Angle Joint Size CS19
SKU: 100734Angle joint DIN71802 CS19, M14x1.5 right galvanized white
Drawing:
d1=19mm
d2=M14x1.5
d3=22mm
l2 = 28mm + -0.3mm
l3 = 20mm + -0.3mm
a = 45mm + -0.3mm
e=min. 21.5mm
SW=16mm
Download (construction drawing)
details
25.30 €incl. 19% VAT
plus shipping
Add to basket -
Angle Joint Size CS8
SKU: 100729Angle joint DIN71802 CS8, M5 right galvanized white
Drawing:
d1=8mm
d2=M5
d3=8mm
l2 = 10.2mm + -0.3mm
l3 = 9mm + -0.3mm
a = 22mm + -0.3mm
e=min. 10.2mm
SW=7mm
Download (construction drawing)
details
4.13 €incl. 19% VAT
plus shipping
Add to basket
